Plastic Extrusion Machinery
Leading Manufacturers, Exporters and Wholesaler of Air Bubble Film Extrusion Line, Cast Embossed Film Extrusion Line, Cast Stretch Film Extrusion Line, Multilayer Blown Film Extrusion Line, PP HDPE Baler Twine Extruder Line, PP HDPE PE Monofilament Extrusion Line, PP HDPE Sheet Extrusion Line and PP PET Box Strapping Extrusion Line from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Heaven Extrusions |
| Country of Origin | India |
| Production Capacity | Up To 160 KG/HR |
| Application | Protective Packaging & Cushioning Films |
| Machine Type | Air Bubble Film Extrusion Line |
| Film Configuration | Single Layer, A-B & A-B-A Co-Extrusion |
| Film Thickness Range | 30 To 80 GSM |
| Automation System | PLC-HMI Controlled Operation |
The Heaven Extrusions Air Bubble Film Extrusion Line is engineered for high-quality bubble film production used in protective packaging, cushioning, insulation, and industrial applications. Designed with advanced twin-extruder systems, precision bubble dies, and stable cooling tower technology, the line ensures uniform bubble size, strong film strength, excellent air retention, and continuous high-speed production performance. The machine supports single-layer as well as co-extrusion bubble films in A-B and A-B-A configurations for enhanced barrier properties and superior cushioning applications.
The line is equipped with high-output energy-efficient extruders, precision bubble die systems with adjustable air rings, PLC + HMI-based automatic thickness and bubble diameter control systems, automatic winding units, stable cooling towers, edge trimming systems, and recycling support systems for efficient industrial production. The robust machine design provides stable operation, reduced maintenance, high productivity, and energy-efficient processing suitable for domestic and export-oriented manufacturing industries.
Optional features available with the machine include multi-layer co-extrusion systems, anti-static treatment systems, corona treatment units, and jumbo roll winding systems for lamination-ready output production. The machine is ideal for manufacturing protective packaging bubble films for electrical and electronic appliances, industrial cushioning films, anti-static bubble films for glassware and ceramic products, automobile cushioning films, medical and pharmaceutical protective packaging films, e-commerce packaging films, shopping mall packaging materials, and fragile product wrapping applications. Technical models are available with screw sizes from 70 MM to 100 MM, die widths up to 2250 MM, production capacities up to 160 KG/HR, and line speeds up to 50 MPM for industrial-scale bubble film manufacturing.
Standard Features:
- High-output extruder with energy-efficient screw
- Precision bubble die with adjustable air ring
- Bubble diameter and thickness control via PLC + HMI
- Automatic center or surface winding system
- Cooling tower for stable bubble formation
- Edge trimming and recycling system
Optional Features:
- Multi-layer co-extrusion system
- Anti-static treatment
- Corona treatment
- Jumbo roll winder with lamination-ready output
Technical Specifications:
- Models: HEABS/1000, HEABS/1200, HEABS/1500, HEABS/2000
- Screw Size: 70 MM To 100 MM
- Die Width: 1250 MM To 2250 MM
- Film Thickness Range: 30 To 80 GSM
- Max Line Speed: 40 To 50 MPM
- Max Production Capacity: 70 To 160 KG/HR
- Total Connected Load: 70 KW To 100 KW
Applications:
- Protective Packaging Films
- Industrial Cushioning Films
- Anti-Static Bubble Films
- Medical & Pharmaceutical Packaging
- E-Commerce Packaging
- Fragile Product Wrapping
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Heaven Extrusions |
| Country of Origin | India |
| Production Capacity | Up To 300 KG/HR |
| Application | Hygiene, Medical & Industrial Embossed Films |
| Machine Type | Cast Embossed Film Extrusion Line |
| Film Thickness Range | 40 - 150 GSM |
| Automation System | PLC Controlled Industrial Operation |
| Machine Features | Precision Embossing & Servo Winding System |
The Cast Embossed Film Extrusion Line from Heaven Extrusions is engineered for manufacturing premium embossed films with exceptional clarity, superior softness, excellent surface texture, and consistent film quality. Designed for continuous high-volume industrial production, the line combines advanced cast film extrusion technology with precision embossing systems to produce high-quality embossed films suitable for hygiene, medical, industrial, agricultural, automotive, and protective film applications.
The machine is equipped with high-output extrusion systems for processing PE, PP, EVA, and specialty polymers with stable melt quality and uniform film formation. Precision T-die technology ensures flawless thickness control and superior optical properties, while efficient chill roll systems provide rapid cooling and smooth film finishing performance. Advanced embossing stations generate uniform micro and macro embossed surface patterns with excellent consistency and finishing quality. The line also includes servo-based winding systems for perfect roll formation and stable 24x7 high-speed production operation.
The intelligent PLC control system provides real-time monitoring, process control, and recipe management for efficient industrial operation. The robust industrial machine structure offers vibration-free operation, auto edge guiding systems for accurate film alignment, load cell-based tension control systems for consistent winding, turret or single-station winding options, energy-efficient heating and cooling systems, fast changeover capability, and simplified machine operation.
The machine is suitable for manufacturing baby diaper PE back sheet films, medical drape films, surgical films, mattress protector films, hygiene films, automotive embossed films, rubber release films, industrial protection films, embossed cover films, and specialty laminated embossed products. Available technical configurations support die widths up to 2250 MM, film thickness ranges from 40 to 150 GSM, production capacities up to 300 KG/HR, and line speeds up to 100 MPM for industrial-scale embossed film production.
Product Highlights:
- High-output extruder for PE, PP, EVA & specialty polymers
- Precision T-die for uniform thickness control
- Efficient chill roll cooling system
- Advanced embossing station with uniform surface patterns
- Servo-based winding system for stable roll formation
- Intelligent PLC control with recipe management
Key Features:
- Robust vibration-free machine construction
- Auto edge guiding system for film alignment
- Load cell-based tension control system
- Turret or single-station winding options
- Fast changeover and easy operation
- Energy-efficient heating and cooling system
Technical Specifications:
- Models: HSCEFL/1000, HSCEFL/1500, HSCEFL/2000
- Screw Size: 75 MM To 110 MM
- Die Width: 1250 MM To 2250 MM
- Film Thickness Range: 40 To 150 GSM
- Max Line Speed: Up To 100 MPM
- Max Melting Capacity: 120 To 300 KG/HR
- Total Connected Load: 85 KW To 160 KW
Applications:
- Baby Diaper PE Back Sheet Films
- Medical & Surgical Films
- Mattress Protector & Hygiene Films
- Automotive Embossed Films
- Rubber Release Films
- Industrial Protection Films
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Heaven Extrusions |
| Country of Origin | India |
| Production Capacity | Up To 220 KG/HR |
| Application | Stretch Film, Packaging & Lamination Films |
| Machine Type | Cast Stretch Film Extrusion Line |
| Layer Configuration | 2 Layer & 3 Layer Co-Extrusion |
| Film Thickness Range | 20-75 Micron |
| Automation System | PLC-HMI Controlled Operation |
The Heaven Extrusions Cast Stretch Film Extrusion Line is engineered to deliver world-class film quality, consistent thickness, and high-speed productivity for industrial packaging and lamination applications. Available in premium 2-layer (A-B) and 3-layer (A-B-A / A-B-C) configurations, the line combines robust mechanical engineering, advanced extrusion technology, and intelligent automation systems to maximize output while reducing operational costs and material wastage.
The machine is equipped with high-output extruders, precision T-die systems, mirror-finish chill rolls with dual-zone cooling, fully automatic winding units, edge trimming systems with grinders, and touchscreen HMI-based PLC control systems for complete production management and process diagnostics. Advanced automation systems provide accurate control of film width, film thickness, and layer ratios, ensuring superior optical clarity, uniform thickness, and minimal film defects during continuous high-speed industrial production.
Optional upgrades available with the line include co-extrusion configurations, automatic die lip control systems, air knife systems for ultra-thin films, static removal systems, inline surface treatment systems, and jumbo roll winding options for enhanced production flexibility. The machine is suitable for manufacturing flexible packaging films, lamination grade PE films, cling films, stretch films, industrial protection films, high-transparency films, and food & pharmaceutical packaging films. Technical configurations support die widths up to 2250 MM, film thickness ranges from 20 to 75 microns, production capacities up to 220 KG/HR, and line speeds up to 125 MPM for industrial-scale cast film manufacturing applications.
Why Heaven Cast Film Lines?
- Consistent film quality with mirror-finish chill rolls and melt pump technology
- High-speed continuous 24x7 production operation
- Smart PLC + HMI automation system
- Versatile co-extrusion film production capability
- Minimal material wastage with recycling support systems
Standard Features:
- High-output screw and barrel system
- Mirror chill roll with dual-zone cooling
- Fully automatic winding unit
- Edge trim system with grinder
- Touchscreen HMI with diagnostics
Optional Upgrades:
- Co-Extrusion System (A-B / A-B-A)
- Auto Die Lip Control System
- Air Knife System for Ultra-Thin Film
- Static Removal System
- Inline Surface Treatment
- Jumbo Roll Winder Options
Technical Specifications:
- Models: HSCFL/1000, HSCFL/1500, HSCFL/2000
- Screw Size: 55/70/55 MM To 70/100/70 MM
- Die Width: 1250 MM To 2250 MM
- Film Thickness Range: 20 To 75 Micron
- Max Line Speed: Up To 125 MPM
- Max Melting Capacity: 100 To 220 KG/HR
- Total Connected Load: 85 KW To 160 KW
Applications:
- Flexible Packaging Films
- Lamination Grade PE Films
- Cling & Stretch Films
- Industrial Protection Films
- High-Transparency Films
- Food & Pharma Packaging Films
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Heaven Extrusions |
| Country of Origin | India |
| Production Capacity | Up To 300 KG/HR |
| Application | Packaging,Agricultural & Industrial Films |
| Machine Type | Multilayer Blown Film Extrusion Line |
| Layer Configuration | 2 Layer To 5 Layer Film Production |
| Film Thickness Range | 20 To 200 Micron |
| Automation System | PLC-HMI Automatic Control System |
The Heaven Extrusions Multilayer Blown Film Extrusion Line represents the pinnacle of precision, flexibility, and high-performance extrusion technology. Designed for producing 2 to 5 layer films, this line delivers superior barrier properties, enhanced mechanical strength, and excellent optical clarity, meeting the stringent demands of flexible packaging, laminates, FIBC, agricultural films, and industrial applications.
The Multilayer Blown Film Line adopts advanced high-output extrusion systems, energy-efficient screws, advanced spiral or stacked dies, highly precise air ring cooling systems, IBC systems, bubble stabilizing devices, 360-degree rotating haul-off units or rotating dies, corona treatment stations, central guide systems, inline trimming and slitting systems, and surface-type film winding units with auto tension control systems. The line adopts automatic microcomputer control integrated with colourful touch screen HMI systems for online help, production recording, safety protection, startup protection, and simplified machine operation.
Whether producing PE, LDPE, LLDPE, HDPE, or barrier-composite films, the machine delivers maximum flexibility, scalability, and long-term reliability, making it suitable for premium converters and exporters.
Optional Features:
1. Automation & Process Control
- Automatic Gauge Control System for uniform film thickness
- IBC System for improved output and bubble stability
- Auto Air Ring with Profile Control
- Gravimetric Dosing & Blending System
- SCADA / Central Monitoring System
2. Film Quality Enhancement
- Corona or Plasma Surface Treatment
- Electrostatic Pinning Device
- Inline Gusseting Unit
3. Material Handling & Utility Upgrades
- Vacuum Auto Loaders with Dryers
- Material Storage Silos
- Online Flexo Printing Attachment
4. Advanced Winding Solutions
- Automatic Back-To-Back Two Station Winding System
Technical Specifications:
- Models: HEMBL-1200, HEMBL-1500, HEMBL-2000, HEMBL-2500
- Film Width: 600 MM To 2500 MM
- Film Thickness: 20 To 200 Micron
- Max Melting Capacity: 140 To 300 KG/HR
- Screw Diameter: 50 MM To 75 MM
Applications:
1. Flexible Packaging Films
- Food Packaging Films
- Snacks & Namkeen Packaging
- Milk Pouches
- Oil Pouches
- Sugar & Flour Packing Films
- Detergent & Powder Packing Bags
2. Industrial & Commercial Films
- Shrink Films
- Stretch Hood Films
- Heavy-Duty Bags
- Courier & E-Commerce Packaging
- Pallet Cover Films
- Industrial Liners
3. Agricultural Films
- Greenhouse Films
- Mulching Films
- Silage Stretch Films
- Water Barrier Films
- Fumigation Films
4. Consumer & Household Films
- Cling Films
- PE Wrapping Films
- Garbage Bags
- Shopping Bags
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Brand Name | Heaven Extrusions |
| Application | Agricultural, Industrial & Packaging Twines |
| Machine Type | PP HDPE Baler Twine Extruder Line |
| Material Compatibility | PP & HDPE Materials |
| Production Features | Controlled Diameter & High Tensile Strength |
| Automation System | PLC-HMI Controlled Operation |
| Machine Configuration | High-Speed Industrial Extrusion System |

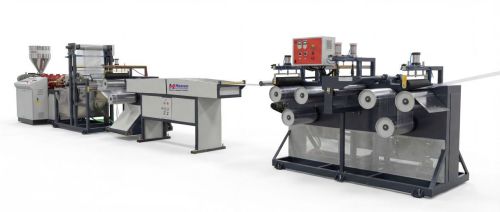

The PP HDPE Baler Twine Extruder Line from Heaven Extrusions is an advanced industrial extrusion system engineered for manufacturing high-strength PP and HDPE baler twines used in agricultural, industrial, packaging, and binding applications. Designed with precision extrusion technology and high-speed automation systems, the line delivers uniform twine diameter, excellent tensile strength, smooth winding performance, and stable continuous industrial production suitable for domestic and export-oriented industries.
The machine is equipped with energy-efficient extruders, precision die systems, automatic tension control systems, high-speed winding units, and PLC-HMI-based automation controls for accurate process monitoring and consistent twine production. The advanced industrial machine design ensures reduced downtime, minimal maintenance, stable production performance, and efficient material processing during continuous operation. Optional winding systems are available for large bobbin production and industrial packaging requirements.
The PP HDPE Baler Twine Extruder Line is ideal for producing agricultural baling twines, industrial tying twines, packaging twines, export-grade binding twines, and high-strength industrial yarn products. The line supports precision-controlled diameter production with excellent mechanical strength and reliable industrial operation for large-scale twine manufacturing applications.
Key Features:
- Produces uniform twines with controlled diameter and high tensile strength
- PLC-HMI automation with tension and speed control
- High-speed extrusion with minimal downtime
- Energy-efficient extruders and precision die system
- Optional winder for large bobbins
- Stable continuous industrial production operation
Applications:
- Agricultural Baling & Packaging
- Industrial Tying & Binding
- Export-Grade Twines
- Packaging Twines
- Industrial Yarn Applications
- Heavy-Duty Binding Applications
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Machine Type | PP HDPE PE Monofilament Extrusion Line |
| Brand | Heaven Extrusions |
| Material Compatibility | PP, HDPE, PE & Blended Resins |
| Filament Diameter Range | 0.10 MM To 2.00 MM |
| Production Capacity | Up To 200 KG/HR |
| Automation System | PLC-HMI Controlled Operation |
| Applications | Ropes, Fishing Lines, Brush & Industrial Filaments |
The PP HDPE PE Monofilament Extrusion Line from Heaven Extrusions is engineered for producing high-strength, uniform monofilaments used in brush filaments, brooms, fishing lines, ropes, industrial fabrics, nets, and filter applications. Designed with precision extrusion technology and advanced automation systems, the line delivers consistent filament diameter, superior mechanical strength, excellent surface finish, and stable high-speed industrial production performance.
The machine is equipped with precision-engineered extruders, high-quality die heads, advanced cooling systems, stretching units, take-up systems, high-speed winding systems, and tension control mechanisms to ensure stable operation and accurate filament production. The PLC-HMI-based automation system provides efficient process monitoring, simplified operation, high productivity, and minimal material wastage during continuous industrial manufacturing operations.
The line supports processing of PP, HDPE, PE, and blended resin materials for industrial and export-grade monofilament applications. The robust machine construction ensures reliable long-term operation, energy-efficient production, precision stretching performance, and excellent dimensional stability suitable for demanding industrial environments.
The PP HDPE PE Monofilament Extrusion Line is suitable for manufacturing industrial ropes, brush filaments, broom fibers, fishing lines, filter fabrics, woven industrial materials, and various monofilament-based industrial products. Available technical configurations support output capacities up to 200 KG/HR, filament diameters up to 2.00 MM, and line speeds up to 180 MPM for industrial-scale monofilament production applications.
Key Features:
- Precision extruder system for uniform filament production
- High-quality die head for accurate filament sizing
- Advanced cooling and take-up system
- PLC-HMI automatic control operation
- High-speed winding and tension control system
- Energy-efficient industrial extrusion process
Technical Specifications:
- Models: HEMF/70, HEMF/80, HEMF/90
- Extruder Diameter: 70 MM To 90 MM
- Output Capacity: 50 To 200 KG/HR
- Filament Diameter Range: 0.10 MM To 2.00 MM
- Line Speed: 50 To 180 MPM
Applications:
- Brush Filaments
- Broom Fibers
- Fishing Lines
- Industrial Ropes
- Industrial Fabrics
- Filter Applications
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Heaven Extrusions |
| Country of Origin | India |
| Production Capacity | Up To 800 KG/HR |
| Application | Packaging, Automotive & Industrial Sheet Production |
| Machine Type | PP HDPE Sheet Extrusion Line |
| Material Compatibility | PP, HDPE, PE, Recycling Granules & CaCO3 |
| Thickness Range | 0.5 MM To 8 MM |
| Automation System | PLC Controlled Industrial Operation |
The PP HDPE Sheet Extrusion Line from Heaven Extrusions is designed for consistent, high-quality sheet production used across packaging, automotive, stationery, geocell, thermoforming, and industrial sheet manufacturing applications. Engineered for efficiency, durability, and precision processing, the machine delivers excellent melt homogeneity, superior thickness accuracy, smooth sheet finishing, and stable continuous industrial production performance. The line supports processing of PP, HDPE, PE, recycling granules, and CaCO3 blends for versatile industrial sheet manufacturing operations.
The machine is equipped with high-output extruders featuring precision-engineered screws and barrels for superior melt quality and maximum throughput. Advanced T-die systems with chock bar and thickness control technology ensure uniform sheet profiles and consistent product quality. Efficient cooling and calendaring systems with heavy-duty three-roll polishing stacks provide excellent clarity, controlled sheet thickness, superior gloss, and smooth or embossed surface finishes.
The line also includes high-performance take-off systems for smooth sheet flow, automatic winding systems for consistent roll formation, and smart PLC control panels with real-time monitoring, data logging, recipe management, and simplified machine operation. The robust industrial machine construction ensures stable operation, minimal maintenance, energy-efficient production, and long service life suitable for domestic and export-oriented manufacturing industries.
The PP HDPE Sheet Extrusion Line is ideal for manufacturing thermoformed containers, trays, automotive interior parts, stationery sheets, industrial liners, packaging sheets, HDPE geocell sheets, PP/HDPE boards, and specialty industrial sheet products. Available technical configurations support sheet widths from 650 MM to 1600 MM, production capacities up to 800 KG/HR, thickness ranges from 0.5 MM to 8 MM, and line speeds up to 18 MPM for industrial-scale sheet extrusion applications.
Key Features:
- High-output extruder with precision-engineered screw and barrel
- Advanced T-die with chock bar and thickness control system
- Heavy-duty three-roll polishing stack
- High-performance take-off unit for smooth sheet flow
- Automatic winding system for consistent roll formation
- Smart PLC control panel with data logging and recipe management
Technical Specifications:
- Models: HESEL/650, HESEL/850, HESEL/1100, HESEL/1400, HESEL/1600
- Extruder Size: 65 MM To 120 MM
- Width Range: 650 MM To 1600 MM
- Output Capacity: 150 To 800 KG/HR
- Thickness Range: 0.5 MM To 8 MM
- Line Speed: 3 To 18 MPM
Applications:
- Thermoformed Containers & Trays
- Automotive Interior Parts
- Stationery Products
- Packaging Sheets
- Industrial Liners
- HDPE Geocell Sheets
- PP/HDPE Board Production
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Heaven Extrusions |
| Application | Carton Strapping, Packaging & Industrial Bundling |
| Country of Origin | India |
| Machine Type | PP PET Box Strapping Extrusion Line |
| Material Compatibility | PP & PET Materials |
| Production Features | Precise Thickness & Tension Control |
| Automation System | PLC-HMI Controlled Operation |
| Machine Configuration | Energy-Efficient Industrial Extrusion System |
The PP PET Box Strapping Extrusion Line from Heaven Extrusions is a high-performance industrial extrusion system engineered for manufacturing strong, uniform, and durable PP/PET strapping tapes used in packaging, pallet bundling, carton strapping, textile packaging, and industrial binding applications. Designed with advanced extrusion technology and precision tension control systems, the line delivers excellent dimensional accuracy, superior strap strength, smooth surface finish, and stable continuous production performance suitable for industrial and export-grade packaging operations.
The machine is equipped with energy-efficient extruders, precision die systems, automatic tension control systems, PLC-HMI-based automation controls, and optional jumbo roll winding systems for high-speed industrial production. The advanced process control system ensures consistent strap width and thickness while maintaining excellent tensile strength and stable production output during continuous operation. The robust industrial machine construction provides reliable long-term operation, reduced downtime, minimal maintenance, and optimized energy consumption for cost-effective strapping tape production.
The PP PET Box Strapping Extrusion Line is suitable for producing industrial packaging straps used in carton strapping, pallet bundling, ceramic industries, textile industries, cotton industries, warehouse packaging, and heavy-duty industrial packaging applications. The machine supports high-strength PP strapping tape production with precise thickness control and excellent packaging reliability for domestic and export-oriented manufacturing industries.
Key Features:
- Produces PP strapping tapes with consistent width and thickness
- High-strength output for packaging and industrial use
- PLC-HMI automation with precise thickness and tension control
- Energy-efficient extruder and die system
- Optional jumbo roll winding system
- Stable high-speed industrial production performance
Applications:
- Box & Carton Strapping
- Pallet Bundling
- Industrial Packaging
- Ceramic Industries
- Textile Industries
- Cotton Industries
