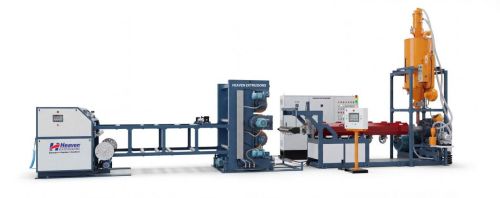

PP HDPE Sheet Extrusion Line

The PP HDPE Sheet Extrusion Line from Heaven Extrusions is designed for consistent, high-quality sheet production used across packaging, automotive, stationery, geocell, thermoforming, and industrial sheet manufacturing applications. Engineered for efficiency, durability, and precision processing, the machine delivers excellent melt homogeneity, superior thickness accuracy, smooth sheet finishing, and stable continuous industrial production performance. The line supports processing of PP, HDPE, PE, recycling granules, and CaCO3 blends for versatile industrial sheet manufacturing operations.

The machine is equipped with high-output extruders featuring precision-engineered screws and barrels for superior melt quality and maximum throughput. Advanced T-die systems with chock bar and thickness control technology ensure uniform sheet profiles and consistent product quality. Efficient cooling and calendaring systems with heavy-duty three-roll polishing stacks provide excellent clarity, controlled sheet thickness, superior gloss, and smooth or embossed surface finishes.

The line also includes high-performance take-off systems for smooth sheet flow, automatic winding systems for consistent roll formation, and smart PLC control panels with real-time monitoring, data logging, recipe management, and simplified machine operation. The robust industrial machine construction ensures stable operation, minimal maintenance, energy-efficient production, and long service life suitable for domestic and export-oriented manufacturing industries.

The PP HDPE Sheet Extrusion Line is ideal for manufacturing thermoformed containers, trays, automotive interior parts, stationery sheets, industrial liners, packaging sheets, HDPE geocell sheets, PP/HDPE boards, and specialty industrial sheet products. Available technical configurations support sheet widths from 650 MM to 1600 MM, production capacities up to 800 KG/HR, thickness ranges from 0.5 MM to 8 MM, and line speeds up to 18 MPM for industrial-scale sheet extrusion applications.

Key Features:

• High-output extruder with precision-engineered screw and barrel
• Advanced T-die with chock bar and thickness control system
• Heavy-duty three-roll polishing stack
• High-performance take-off unit for smooth sheet flow
• Automatic winding system for consistent roll formation
• Smart PLC control panel with data logging and recipe management

Technical Specifications:

• Models: HESEL/650, HESEL/850, HESEL/1100, HESEL/1400, HESEL/1600
• Extruder Size: 65 MM To 120 MM
• Width Range: 650 MM To 1600 MM
• Output Capacity: 150 To 800 KG/HR
• Thickness Range: 0.5 MM To 8 MM
• Line Speed: 3 To 18 MPM

Applications:

• Thermoformed Containers & Trays
• Automotive Interior Parts
• Stationery Products
• Packaging Sheets
• Industrial Liners
• HDPE Geocell Sheets
• PP/HDPE Board Production
