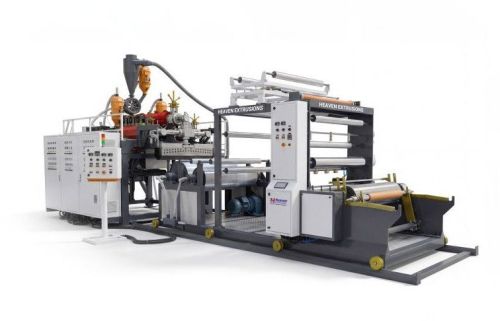

Cast Stretch Film Extrusion Line

The Heaven Extrusions Cast Stretch Film Extrusion Line is engineered to deliver world-class film quality, consistent thickness, and high-speed productivity for industrial packaging and lamination applications. Available in premium 2-layer (A-B) and 3-layer (A-B-A / A-B-C) configurations, the line combines robust mechanical engineering, advanced extrusion technology, and intelligent automation systems to maximize output while reducing operational costs and material wastage.

The machine is equipped with high-output extruders, precision T-die systems, mirror-finish chill rolls with dual-zone cooling, fully automatic winding units, edge trimming systems with grinders, and touchscreen HMI-based PLC control systems for complete production management and process diagnostics. Advanced automation systems provide accurate control of film width, film thickness, and layer ratios, ensuring superior optical clarity, uniform thickness, and minimal film defects during continuous high-speed industrial production.

Optional upgrades available with the line include co-extrusion configurations, automatic die lip control systems, air knife systems for ultra-thin films, static removal systems, inline surface treatment systems, and jumbo roll winding options for enhanced production flexibility. The machine is suitable for manufacturing flexible packaging films, lamination grade PE films, cling films, stretch films, industrial protection films, high-transparency films, and food & pharmaceutical packaging films. Technical configurations support die widths up to 2250 MM, film thickness ranges from 20 to 75 microns, production capacities up to 220 KG/HR, and line speeds up to 125 MPM for industrial-scale cast film manufacturing applications.

Why Heaven Cast Film Lines?

• Consistent film quality with mirror-finish chill rolls and melt pump technology
• High-speed continuous 24x7 production operation
• Smart PLC + HMI automation system
• Versatile co-extrusion film production capability
• Minimal material wastage with recycling support systems

Standard Features:

• High-output screw and barrel system
• Mirror chill roll with dual-zone cooling
• Fully automatic winding unit
• Edge trim system with grinder
• Touchscreen HMI with diagnostics

Optional Upgrades:

• Co-Extrusion System (A-B / A-B-A)
• Auto Die Lip Control System
• Air Knife System for Ultra-Thin Film
• Static Removal System
• Inline Surface Treatment
• Jumbo Roll Winder Options

Technical Specifications:

• Models: HSCFL/1000, HSCFL/1500, HSCFL/2000
• Screw Size: 55/70/55 MM To 70/100/70 MM
• Die Width: 1250 MM To 2250 MM
• Film Thickness Range: 20 To 75 Micron
• Max Line Speed: Up To 125 MPM
• Max Melting Capacity: 100 To 220 KG/HR
• Total Connected Load: 85 KW To 160 KW

Applications:

• Flexible Packaging Films
• Lamination Grade PE Films
• Cling & Stretch Films
• Industrial Protection Films
• High-Transparency Films
• Food & Pharma Packaging Films
